25.50mm High Current Terminal Block 600V 101A Brass Power Terminal Blocks

  • 1
  • 2

Brand Name : SCED

Model Number : TR100-01-BCM0-N1

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Pitch : 25.50mm

Rated Voltage : 600V

Rated Current : 101A

Color : Black

Number Of Contacts : Any Poles Available

Wire Range : 2-20AWG

Applications : PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


25.50mm High Current Terminal Block 600V 101A Brass Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers


How to order:
25.50mm High Current Terminal Block 600V 101A Brass Power Terminal Blocks

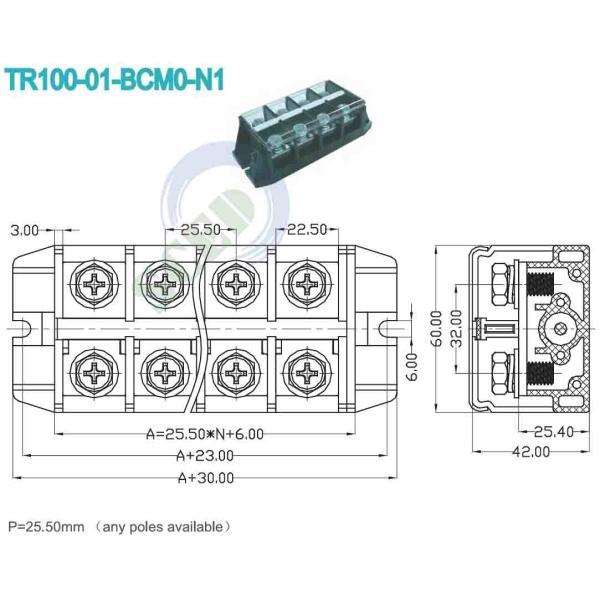

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 101

600 / 101

Wire Range AWG

2-20

2-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 /100

1000 / 100

1000 / 100

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

38

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

10-12

Screw / Torque / lbf.in

M8 / 31-40



25.50mm High Current Terminal Block 600V 101A Brass Power Terminal Blocks


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
