Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

Brand Name : SCED

Model Number : TJ381-06

Certification : CE,UL,CUL,CQC, VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Pc/Pcs

Price : US $ 0.07 - 0.11 / Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month frequency converters spring terminal block

Delivery Time : 5-20 days

Packaging Details : Standard export carton

Name : Electrical terminal block

Operating Temperature : -40--+105 degree

Current : 5A

Available poles : 2-28 poles

Volt : 300 V

Level : 1 level

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Resistance : Less than 8mΩ

Pitch : 3.5 mm

Contact Now

Detailed product Description:

Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, Screwless terminals

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

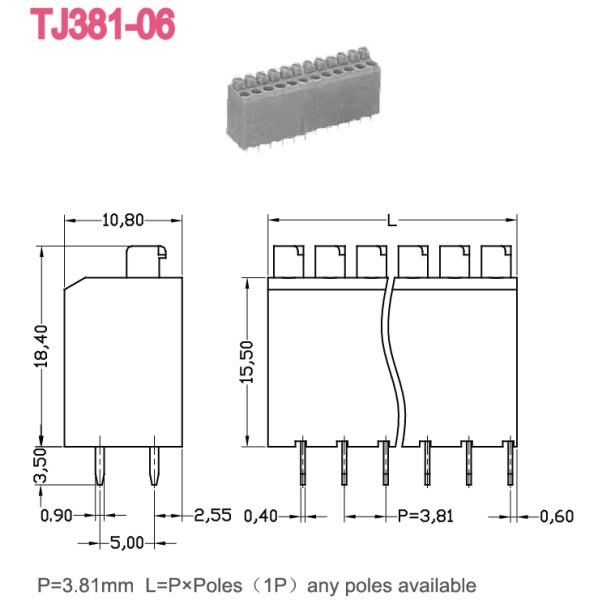

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

Wire Range AWG

16-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

9-10

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
